RT Series

Follow these guidelines for optimum base station replacement:

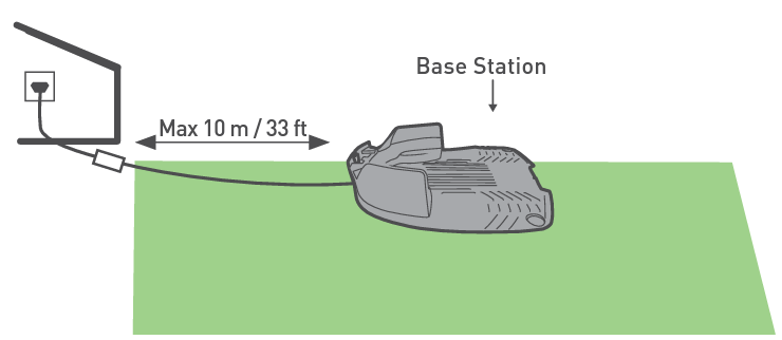

1.
Up to 10 meters / 33 feet away from a power outlet.

2.
For proper charging and better lifespan of the battery, it is recommended to locate the base station in a place that is shaded most of the day.

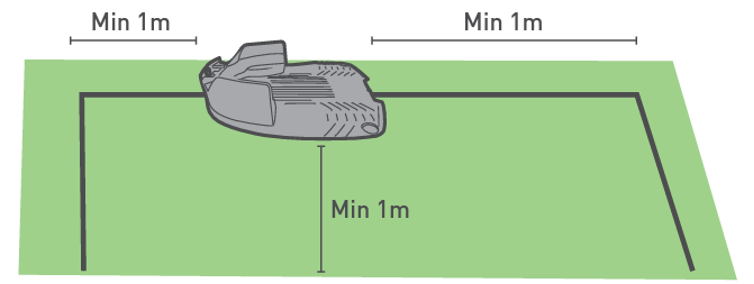

3.
A min. of 1 meter / 3.3 feet straight wire before, after and aside the base to allow smooth docking.

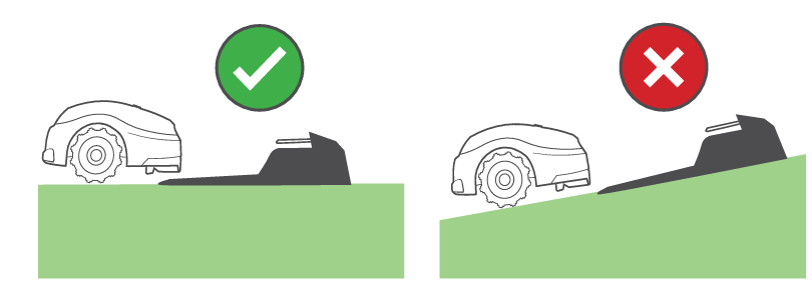

4.
Even and flat (up to +/-5% slope).

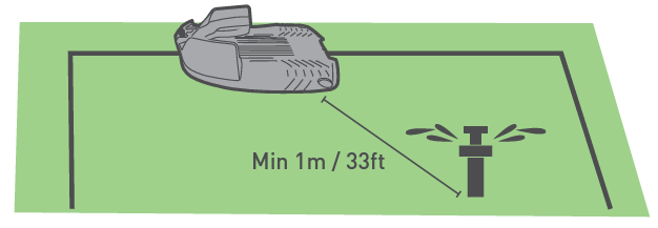

5.
A minimum of 1 meter / 3.3 feet from a sprinkler head to avoid hitting the mower directly and damaging its internal components.

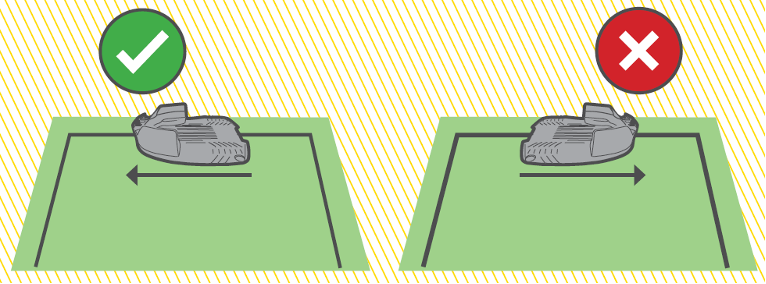

6.
Watch the proper direction of the Base Station relative to the lawn’s edge.
